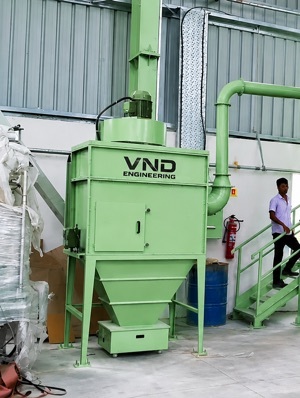

Cartridge Dust Collector

Cartridge Dust Collector Specification

Measurement
Particulate Matter Removal

Usage & Applications
For industrial dust extraction and air filtration systems in cement, pharma, metal works, woodworking, and more

Power Source
Electric

Air Flow
Up to 30,000 m3/h

Orientation
Vertical

Instruments Type
Dust Collection System

Scrubber Type
Dry Scrubber Type (Cartridge Filter Based)

Automation Grade
Semi-Automatic / Fully Automatic

Sensor Type
Differential Pressure Sensor (if equipped)

Efficiency
>99%

Display Type
Analog / Digital (as Applicable)

Temperature
Ambient to 80C

Product Type
Heavy duty

Material
Ms powder coated

Cooling System
Other

Noise Level
69db

Processing Time
Continuous

Capacity
500 m3/h to 30,000 m3/h

Voltage
415volt

Weight
750kg

Dimension (L*W*H)
Customized as per requirement

Surface
Powder coated / Painted

Customization
Available to suit specific application

Cleaning Mechanism
Automatic Pulse Jet Cleaning

Inlet Type
Single /Multiple Inlet Options

Service Life
Filter life up to 12,000 hours

No. of Filter Cartridges
2 to 32 (Depends on model)

Static Pressure
150-2000 mm WG

Filter Media
Imported Polyester/Cellulose (Nano-composite optional)

Fan Power
3 HP to 50 HP

Discharge Method
Dust Bin / Bag / Rotary Airlock Valve

Installation
Floor Mounted / Skid Mounted

Dust Emission Level
<10 mg/Nm3

Cartridge Dust Collector Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Week

Delivery Time
2 Week

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Domestic Market
Kerala, Tamil Nadu

About Cartridge Dust Collector

Unlock astonishing industrial air quality with our Cartridge Dust Collector, featuring brilliant imported polyester/cellulose filter media (nano-composite optional) and a monumental dust emission level of <10 mg/Nm3. Boasting capacities from 500 to 30,000 m3/h and power options from 3 to 50 HP, this unit adapts fluidly to industries like cement, pharma, and metal works. Enjoy the benefits of automatic pulse jet cleaning, customizable dimensions, superb efficiency over 99%, and a filter life of up to 12,000 hours-all at competitive pricing. Bargain deals available for distributors and bulk orders!

Exceptional Usage Versatility & Enhanced Features

Designed for continuous, heavy-duty industrial dust extraction, our Cartridge Dust Collector suits cement, pharma, woodworking, metalworking, and more. Its flexible inlet configuration (single/multiple), semi or fully automatic controls, and ambient to 80C operation elevate operational efficiency. The dry scrubber type with powder-coated surfaces, analog/digital display, and advanced differential pressure sensors guarantee precision in particulate matter removal, ensuring a safer and cleaner work environment. Customization ensures every unique industrial need is brilliantly addressed.

Domestic Market Reach, Sample Policy & Delivery Details

With a monumental presence across all major domestic markets, our dust collector systems are competitively offered at attractive asking rates. Samples can be provided upon request under our feasible sample policy. Once ordered, products are delivered efficiently, ensuring minimal downtime. Standard delivery time varies based on customization, guaranteeing you receive a product tailored to your needs exactly when promised.

FAQ's of Cartridge Dust Collector:

Q: How does the automatic pulse jet cleaning mechanism function in this dust collector?

A: The automatic pulse jet cleaning mechanism periodically releases short bursts of compressed air, dislodging dust that accumulates on the filter cartridges. This process ensures consistent airflow and optimal filtration without manual intervention, enhancing efficiency and service life.

Q: What are the advantages of using imported polyester/cellulose or nano-composite filter media?

A: Imported polyester/cellulose filter media provide high filtration efficiency and durability, suitable for different types of particulates. The optional nano-composite layer further increases particle capture, making the system especially effective for fine dust environments and prolonging filter life.

Q: Where can the Cartridge Dust Collector be installed and what mounting options are available?

A: The unit is engineered for flexibility, allowing for both floor-mounted and skid-mounted installations. This makes it adaptable to a wide range of factory layouts and facility requirements.

Q: What is the typical service life of the filters, and what factors can influence it?

A: The filters can last up to 12,000 hours under normal conditions. Factors like dust loading, maintenance practices, and the type of dust processed may influence actual lifespan, but the automatic cleaning system helps maximize longevity.

Q: How can orders be placed, and what is the expected delivery timeframe?

A: Orders can be placed directly through our sales team or authorized distributors. Delivery time depends on the degree of customization, but every effort is made to deliver as scheduled to minimize disruption to your operations.
