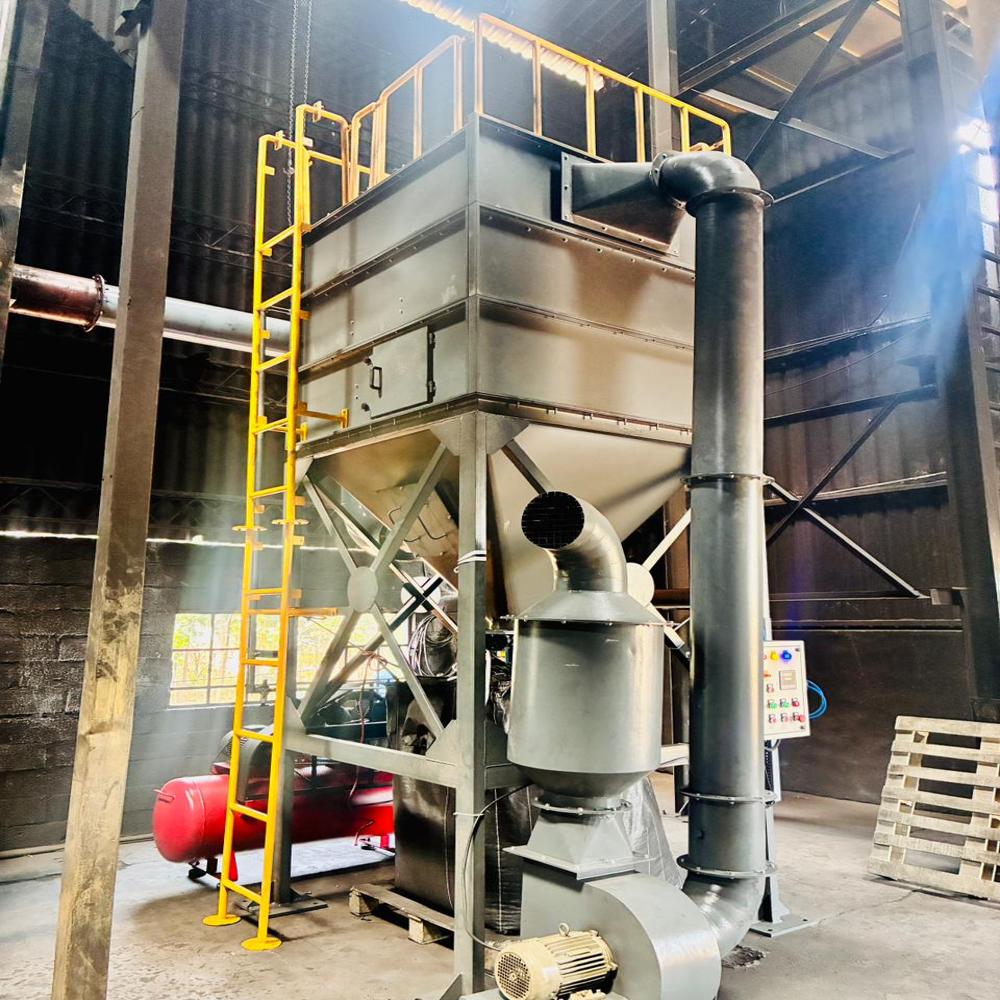

Reverse Pulse Jet Dust Collector

Name: Reverse Pulse Jet Dust Collector
Brand: VND ENGINEERING AND SPARES
Price: 175750.0 INR
Availability: InStock

Reverse Pulse Jet Dust Collector Specification

Orientation
Vertical

Automation Grade
Automatic

Instruments Type
Industrial Equipment

Measurement
Particulate Concentration

Power Source
Electric

Usage & Applications
Industrial Dust Filtration, Manufacturing Plants, Cement, Foundry, Pharmaceutical, Food Processing

Efficiency
>99%

Sensor Type
Differential Pressure Sensor

Air Flow
500-20000 m3/hr

Scrubber Type
Bag Filter Type

Temperature
Upto 80C (can be customized)

Product Type
Dust Collector

Material
Mild Steel

Cooling System
Air Cooling

Noise Level
< 80 dB

Processing Time
Continuous

Capacity
500 to 20000 m3/hr

Voltage
220-415 V

Weight
700-3500 kg

Dimension (L*W*H)
Customizable

Surface
Powder Coated

Bag Cleaning System
Reverse Pulse Jet

Mounting Type
Floor/Skid Mounted

Control Panel
PLC based (Optional)

Bag Material
Polyester, Nomex, PTFE available

Maintenance
Low, with easy bag replacement

Filter Area
10 to 150 m2

Color
Standard Grey/Blue (custom options available)

No. of Bags
As per capacity

Outlet Emission
<10 mg/Nm3

Inlet Dust Load
Up to 30 g/Nm3

Compressed Air Pressure
5-7 bar

Particle Size Collection
Down to 1 micron

About Reverse Pulse Jet Dust Collector

Discover the world-class Reverse Pulse Jet Dust Collector-an exclusive solution for industrial dust filtration. Engineered with a prodigious filter area (10-150 m2) and capability to redeem inlet dust loads up to 30 g/Nm3, this system boasts reduced emissions (<10 mg/Nm3). Select bag materials like Polyester, Nomex, and PTFE, paired with pivotal PLC-based control for automatic cleaning. Designed for continuous processing, it ensures low maintenance, easy bag replacement, and unwavering operational efficiency (>99%). Enjoy highly customizable dimensions, color, and orientation for seamless integration into diverse applications across India.

Distinctive Features and Application Versatility

The Reverse Pulse Jet Dust Collector sets a pivotal benchmark in dust management, offering extra features such as automatic PLC-based controls and reduced maintenance with its easy bag replacement. Its prodigious capacity range (500-20,000 m3/hr) makes it ideal for manufacturing plants, cement factories, foundries, pharmaceuticals, and food processing units. With the ability to collect particles down to 1 micron, this system proves indispensable for both specific industrial challenges and general air purity requirements.

Sample Policy, Delivery Timeline, and Supply Strength

Our sample policy is transparent and client-focused-estimate requests can be fulfilled rapidly thanks to our stock-ready inventory. We ensure reliable logistics, supporting on-time sample deliveries to streamline evaluation. Delivery time for standard collectors is typically quick, owing to our robust supply ability and in-house manufacturing. Export, distributor, and trading partners across India benefit from our seamless support framework, ensuring efficient fulfillment for projects both large and small.

FAQ's of Reverse Pulse Jet Dust Collector:

Q: How does the reverse pulse jet cleaning process enhance filter performance?

A: The reverse pulse jet mechanism periodically delivers compressed air pulses to the filter bags, effectively dislodging trapped dust. This pivotal cleaning process ensures the filter area maintains optimal permeability and efficiency, resulting in reduced pressure drop and consistent filtration performance.

Q: What types of bag materials are available for different applications?

A: Our dust collectors accommodate Polyester, Nomex, and PTFE bag materials. Each offers specific chemical and thermal resistance properties, making them suitable for varied industrial scenarios-including high-temperature or aggressive dust environments.

Q: Where can the Reverse Pulse Jet Dust Collector be effectively used?

A: This equipment is widely used in manufacturing plants, cement factories, foundries, pharmaceutical units, and food processing plants-anywhere stringent dust control and high filtration efficiency are essential for safe and clean operations.

Q: What are the benefits of the automatic PLC-based control panel?

A: The optional PLC-based control panel delivers world-class automation, monitoring filter cleaning intervals, and system status. This reduces manual intervention, enhances operational reliability, and optimizes filter life for substantial cost savings.

Q: When should bags be replaced, and how easy is the replacement process?

A: Bag replacement intervals depend on dust loading and process usage. Thanks to the collector's reduced maintenance design, accessing and replacing filter bags is straightforward and quick, minimizing downtime and labor costs.
