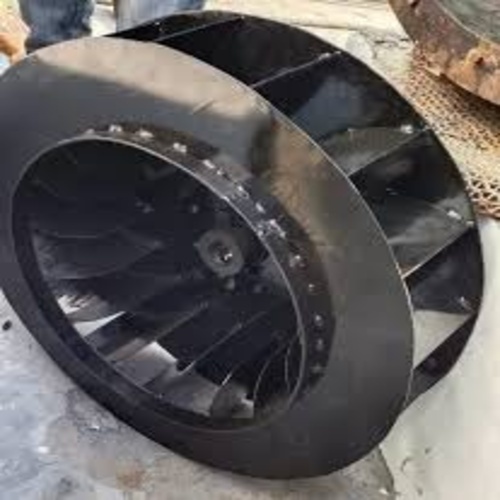

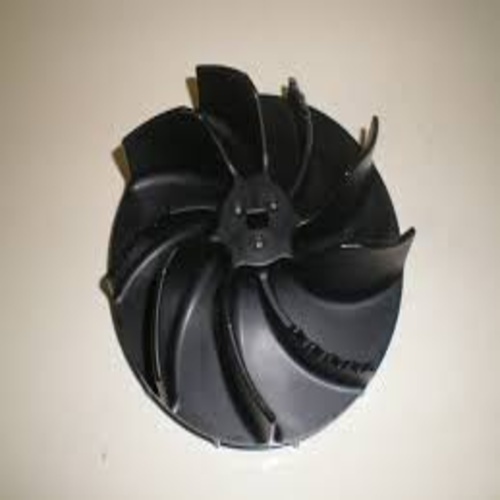

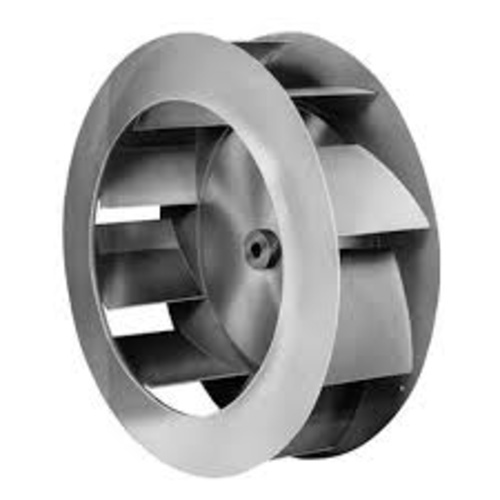

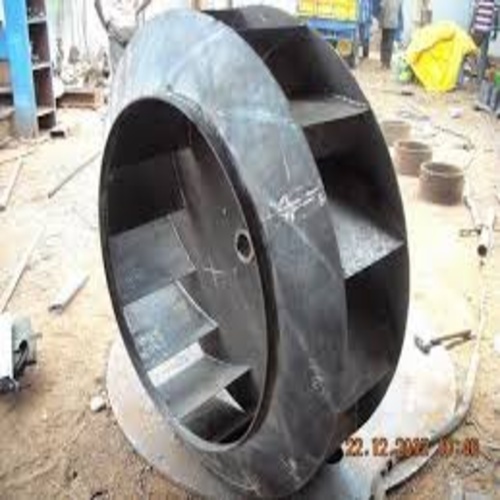

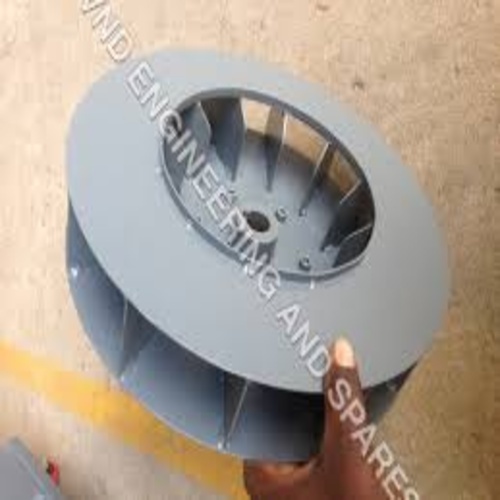

IMPELLER FANS

About IMPELLER FANS

Impeller fans, primarily used in centrifugal or blower designs, are rotating components with blades that convert rotational energy into kinetic energy to move air or gas. They work by pulling air axially into the hub and accelerating it radially outward via centrifugal force, making them ideal for high pressure.

Key Components and Design

Blades/Vanes: Mounted on a hub, these determine the airflow performance, with shapes ranging from flat plates to complex curved surfaces.

Housing/Casing: Typically a spiral shaped casing that optimizes airflow and reduces noise.

Materials: Engineered from metal (aluminum, steel, stainless steel) to handle high temperatures and corrosive environments.

Key Impeller Types

Forward Curved (Squirrel Cage): Features many small blades curved in the direction of rotation; efficient for high-volume, low pressure applications.

Backward Curved/Inclined: Blades curve against rotation, providing high efficiency and reliability for high pressure systems.

Radial Bladed: Straight blades extending from the center, ideal for material handling (dust, particles) and high temperature applications.

Mixed Flow: Blends characteristics of both axial and centrifugal, offering moderate pressure and airflow.

nefits

High Performance: Capable of overcoming significant system resistance and static pressure, says Iqsdirectory.

Durability: Robust construction suits industrial applications like dust collection and drying.

Efficiency: Advanced, curved blade designs minimize energy consumption.
